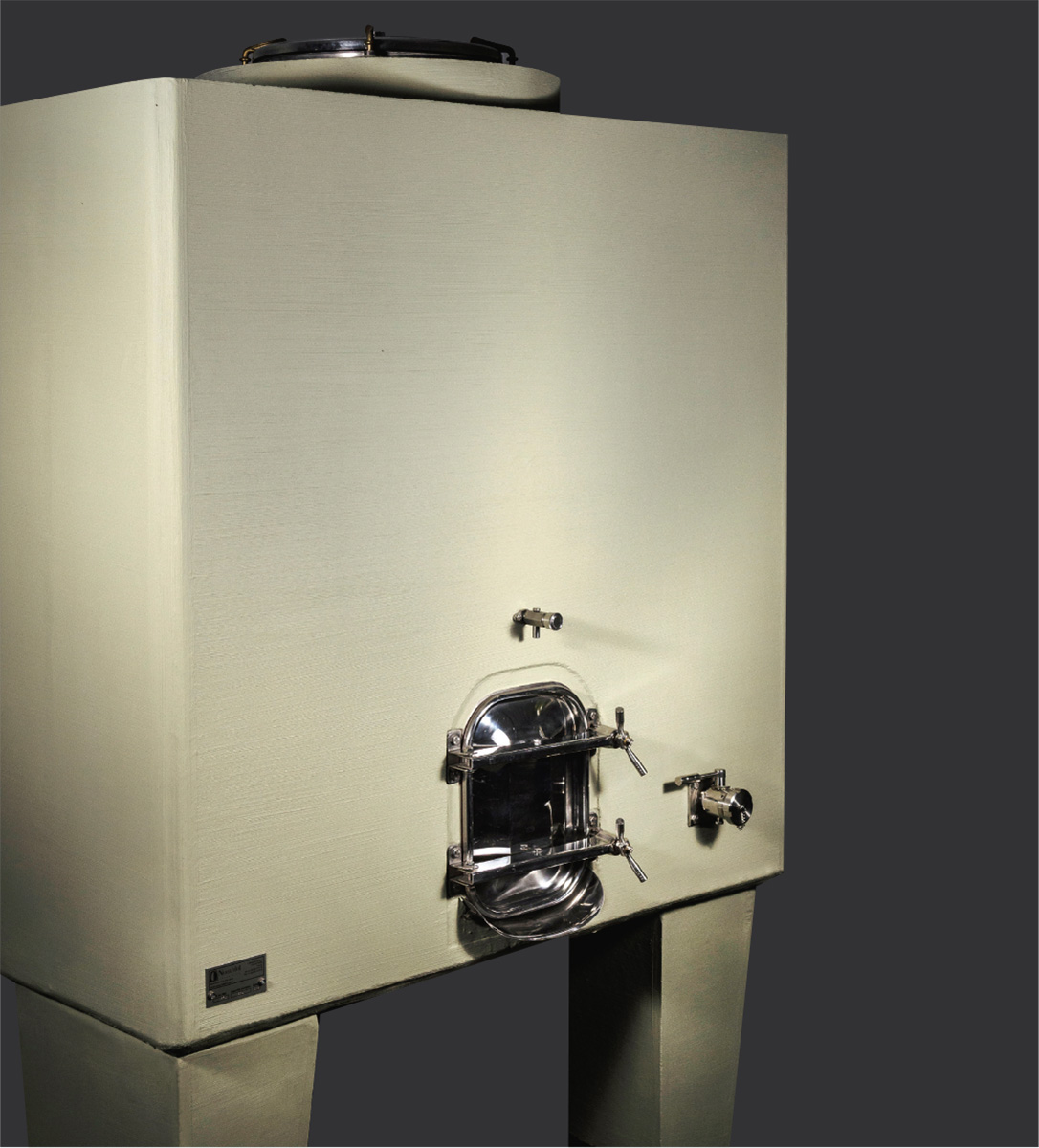

Burgundy tank B model

The “Burgundian”vat is the first model Nomblot produced. It has become a standard of reference. It is the vat most commonly found in Burgundy where over 10,000 vats are in use.

Basic colors available
Blanc Coquille d'oeuf Gris anthracite Gris clair Gris moyen Lie de vin Noir Ocre rouge Pierre Vert d'eau
Contact us for any specific request

BURGUNDY
Only one depth - 2 heights and 4 widths possible

The different models
Units of measurement system : International Sytem

Modéle Volume Width Depth Height Weight
B 21 21 1,10 2,3 1,4 3,3
B 30 30 1.10 2,3 1,9 4,1
B 31 31 1,5 2,3 1,4 4,1
B 40 43 2,0 2,3 1,4 5,1
B 45 40 1,50 2,3 1,9 5,0
B 55 58 2,6 2,3 1,4 6,3
B 60 62 2,0 2,3 1,9 6,1
B 80 83 2,6 2,3 1,9 7,4
